Ford Ecosport: Automatic Transmission - 6-Speed Automatic Transmission – 6F35 / Description and Operation - Transmission Description - System Operation and Component Description

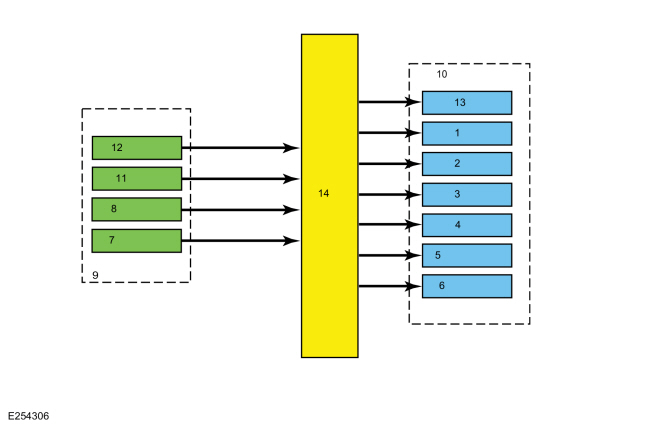

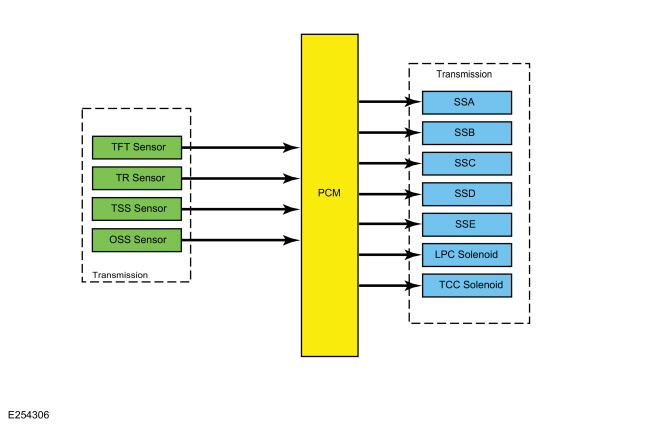

System Diagram

Item	Description
1	SSB
2	SSC
3	SSD
4	SSE
5	LPC Solenoid
6	TCC Solenoid
7	OSS Sensor
8	TSS Sensor
9	Transmission
10	Transmission
11	TR Sensor
12	TFT Sensor
13	SSA
14	PCM

Network Message Chart

Broadcast Message	Originating Module	Message Purpose
Engine Speed	PCM	Directly affects shift scheduling, TCC control, line pressure and transmission diagnostics. Indirectly affects shift pressure control.
Engine torque estimate	PCM	Directly affects shift pressure control, TCC control and transmission diagnostics. Indirectly affects shift scheduling and TCC scheduling.
APP	PCM	Directly affects shift scheduling, TCC scheduling and transmission diagnostics. Indirectly affects TCC control and shift control.
Commanded engine torque	PCM	Directly affects shift scheduling, TCC scheduling and transmission diagnostics. Indirectly affects shift control.
BPP	PCM	Directly affects shift scheduling and TCC scheduling

System Operation

The PCM and its input/output network controls the following operations:

Shift timing

Line pressure (shift feel)

The transmission control strategy is separate from the engine control strategy in the PCM , although some of the input signals are shared. When determining the best operating strategy for transmission operation, the PCM uses input information from engine and driver related sensors and switches.

In addition, the PCM receives input signals from transmission related sensors and switches. The PCM uses these signals when determining transmission operating strategy.

Using all of these input signals, the PCM can determine when the time and conditions are right for a shift or when to apply or release the TCC . It also determines the best line pressure to optimize shift engagement feel. To accomplish this, the PCM uses output solenoids to control transmission operation.

Component Description

Sensors and Switches

The PCM controls the electronic functions of this transmission. The PCM receives input signals from engine and transmission sensors and uses these inputs to control line pressure, shift time, TCC and shift solenoids.

Item	Description
TFT Sensor	This sensor is located in the transmission internal wiring harness frame. It is a temperature-sensitive device called a thermistor. The resistance value of the TFT sensor will vary with temperature change. The PCM monitors the voltage across the TFT sensor to determine the temperature of the transmission fluid. The PCM uses this initial signal to determine whether a cold start shift schedule is necessary. The cold start shift schedule allows delayed shifts when the transmission fluid is cold to help warm the transmission fluid. The PCM also inhibits TCC operation at low transmission fluid temperatures and adjusts line pressure for temperature.
TR Sensor	The TR sensor assembly is an internally mounted sensor located on the manual control lever shaft. The TR sensor contains electronic circuitry that provides the PCM a fixed frequency duty cycle for each of the various positions of the manual lever (PARK, REVERSE, NEUTRAL, (D), and L) to the PCM . The PCM uses the TR sensor signal for engine start, reverse lamps and for line pressure control, shift scheduling and TCC operation.
TSS Sensor	The TSS sensor is a Hall-effect type sensor that provides a TSS signal to the PCM . The TSS signal changes in frequency as the rotating speed of the trigger wheel, part of the direct clutch cylinder, varies. The TSS information is compared to engine rpm to determine TSS performance. The TSS is also compared to the OSS to determine shift quality and clutch performance.
OSS Sensor	The OSS sensor is a Hall-effect type sensor that provides an OSS signal to the PCM . The OSS signal changes in frequency as the rotating speed of the trigger wheel, part of the park gear, varies. The OSS is used for shift scheduling. The OSS is also compared to the TSS to determine shift quality and clutch performance.

System Diagram

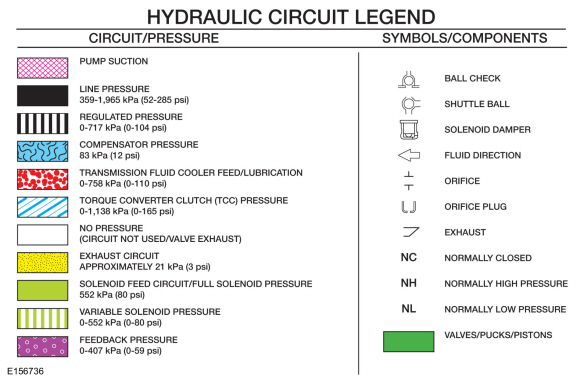

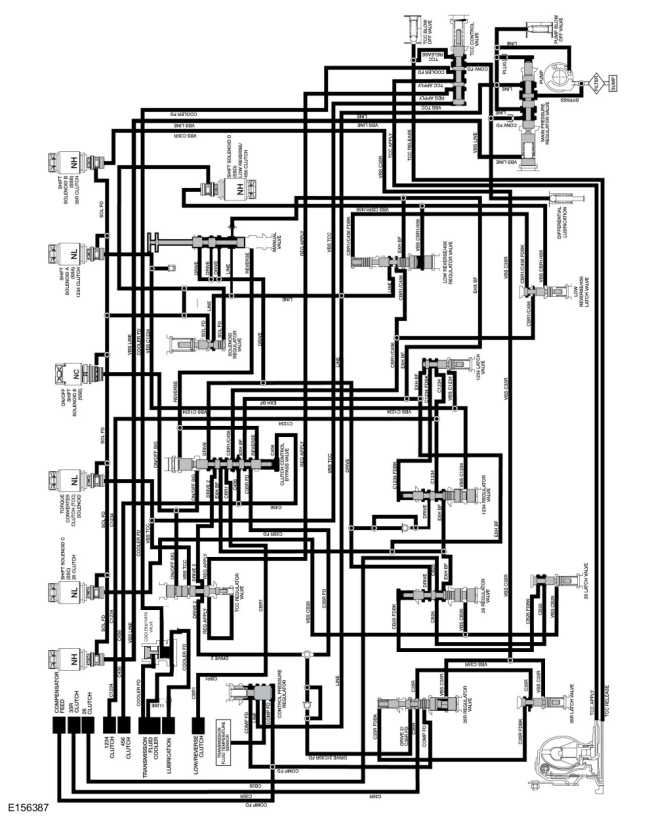

  Hydraulic Circuit Identification Chart

Circuit Name	Description
BYPASS	Pressure from the main pressure regulator valve to the pump assembly suction circuit for line pressure control.
C1234	Regulated line pressure from the 1234 regulator valve supplied to the forward (1, 2, 3, 4) clutch to apply the clutch.
C1234 FDBK	C1234 pressure from the 1234 latch valve supplied to the 1234 regulator valve to oppose movement of the valve from VBS C1234 pressure during forward (1, 2, 3, 4) clutch application.
C35R	Regulated line pressure from the 35R regulator valve supplied to the direct (3, 5, R) clutch to apply the clutch.
C35R FD	Line pressure from the REVERSE circuit supplied to the DRIVE 2/C35R FD shuttle valve by the clutch control bypass valve to supply the 35R regulator valve with line pressure in reverse.
C35R FDBK	C35R pressure from the 35R latch valve supplied to the 35R regulator valve to oppose movement of the valve from VBS C35R pressure during direct (3, 5, R) clutch application.
C456	Regulated line pressure from the low reverse/456 regulator valve directed to the overdrive (4, 5, 6) clutch by the clutch control bypass valve. C456 also provides latch pressure for the clutch control bypass valve.
CB26	Regulated line pressure from the 26 regulator valve to the intermediate (2, 6) clutch to apply the clutch in 2nd and 6th gears.
CB26 FDBK	CB26 pressure from the 26 latch valve supplied to the 26 regulator valve to oppose movement of the valve from VBS C26 pressure during intermediate (2, 6) clutch application.
CBR1	Regulated line pressure from the low reverse/456 regulator valve directed to the low/reverse clutch by the clutch control bypass valve.
CBR1/C456	Regulated line pressure from the low reverse/456 regulator valve to the clutch control bypass valve.
CBR1/C456 FDBK	CBR1/C456 pressure from the low reverse/456 latch valve supplied to the low reverse/456 regulator valve to oppose movement of the valve from VBS CBR1/456 pressure during low/reverse or overdrive (4, 5, 6) clutch application.
COMP FD	Pressure supplied to the opposite side of the overdrive (4, 5, 6) and direct (3, 5, R) clutch apply pistons to oppose centrifugal application of the clutches.
CONV FD	Line pressure from the main pressure regulator valve supplied to the TCC control valve for TCC release.
COOLER FD	Return pressure from the torque converter during TCC release that is directed to the transmission fluid cooler by the TCC control valve.
DRIVE	Line pressure directed to the clutch control bypass valve, 1234 regulator valve and the 26 regulator valve by the manual valve in the DRIVE position.
DRIVE 2	DRIVE pressure directed to the TCC regulator valve and the DRIVE 2/C35R FD shuttle valve by the clutch control bypass valve to supply the 35R regulator valve with line pressure in 3rd and 5th gears.
DRIVE 2/C35R FD	DRIVE 2 or C35R FD pressure supplied to the 35R regulator valve from the DRIVE 2/C35R FD shuttle valve during direct (3, 5, R) clutch application.
EXH	Fluid exhausted from the valves that drains to the sump area.
EXH BF	Unpressurized fluid from the manual valve that fills the unused hydraulic circuits.
LINE	Pressure from the pump to the control pressure regulator, solenoid regulator valve, manual valve and low reverse/456 regulator valve. Line pressure is regulated by the main pressure regulator valve.
LUBE	Transmission lubrication circuit (through the input shaft)
ON/OFF SIG	Full solenoid output pressure from SSE to the clutch control bypass valve and the TCC regulator valve. ON/OFF SIG pressure positions the clutch control bypass valve to apply either the low/reverse clutch or the overdrive (4, 5, 6) clutch.
REG APPLY	Regulated DRIVE 2 pressure supplied to the TCC control valve by the control pressure regulator for TCC application.
REVERSE	Line pressure directed to the clutch control bypass valve by the manual valve in the REVERSE position.
SOL FD	Regulated line pressure supplied to the shift, TCC and LPC solenoids.
TCC APPLY	Pressure supplied to the torque converter by the TCC control valve to apply the clutch. TCC APPLY is also the return circuit for the TCC RELEASE circuit.
TCC RELEASE	Pressure supplied to the torque converter by the TCC control valve to release the clutch. TCC RELEASE is also the return circuit for the TCC APPLY circuit.
VBS C1234	Variable SOL FD pressure supplied to the 1234 regulator valve and 1234 latch valve by SSA to position the valves to apply the forward (1, 2, 3, 4) clutch.
VBS C35R	Variable SOL FD pressure supplied to the 35R regulator valve and 35R latch valve by SSB to position the valves to apply the direct (3, 5, R) clutch.
VBS CB26	Variable SOL FD pressure supplied to the 26 regulator valve and 26 latch valve by SSC to position the valves to apply the intermediate (2, 6) clutch.
VBS CBR1/456	Variable SOL FD pressure supplied to the low reverse/456 regulator valve and low reverse/456 latch valve by SSD to position the valves to apply the low/reverse clutch or overdrive (4, 5, 6) clutch.
VBS LINE	Variable SOL FD pressure supplied to the main pressure regulator valve by the LPC solenoid to control line pressure.
VBS TCC	Variable SOL FD pressure supplied to the TCC regulator valve and TCC control valve to position the valves by the TCC solenoid to apply the TCC .

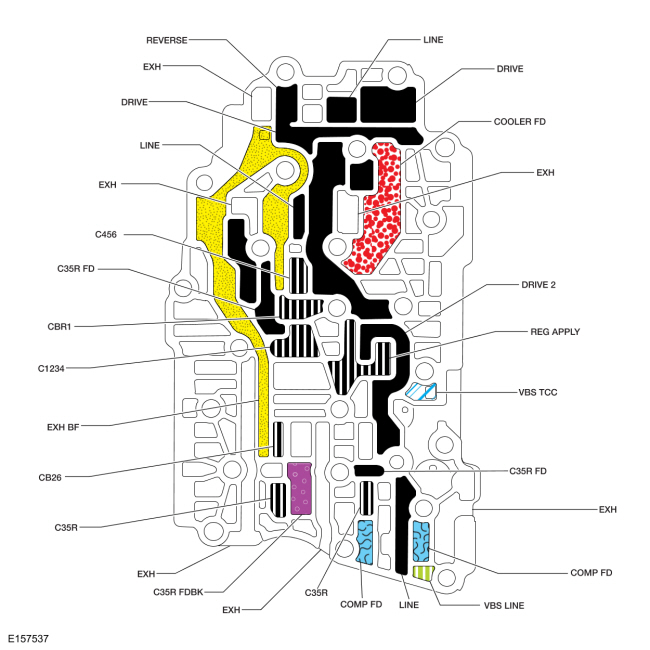

Valve Body Maps for Solenoid and Line Pressure

Solenoid Body Hydraulic Passages

Solenoid Body-to-Valve Body Separator Plate Hydraulic Passages

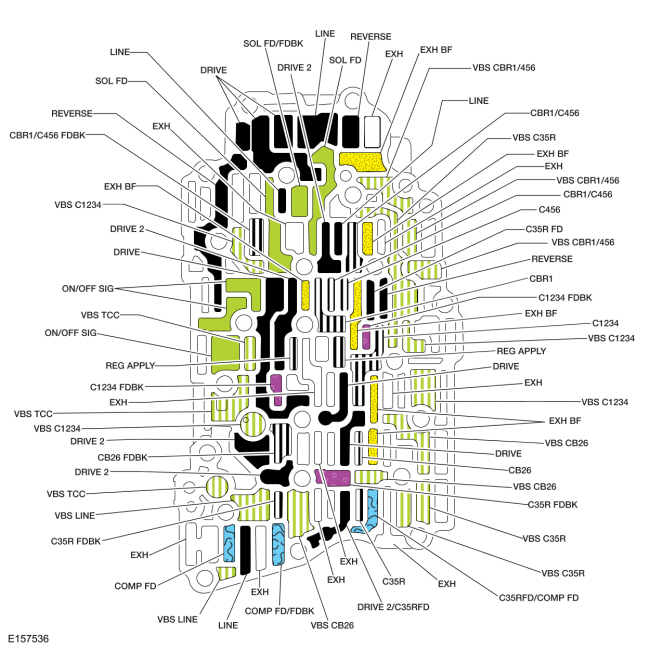

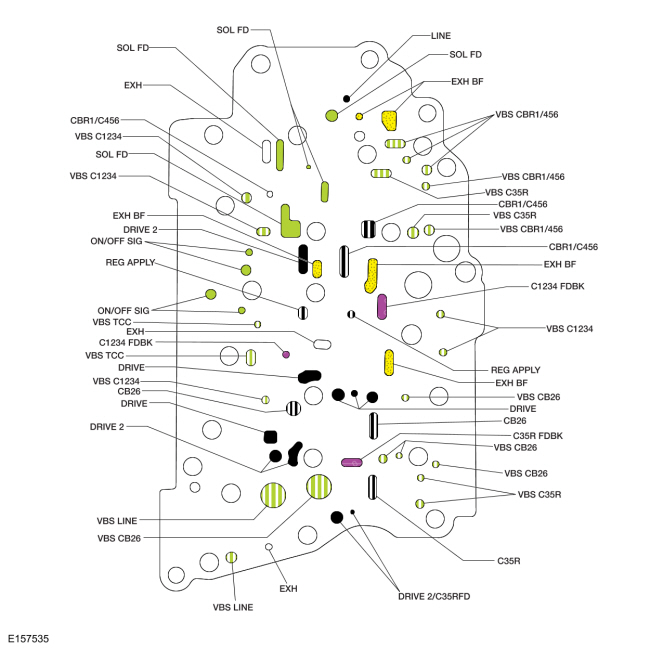

Valve Body Hydraulic Passages (Front View)

Valve Body Hydraulic Passages (Rear View)

Valve Body-to-Transmission Case Separator Plate Hydraulic Passages

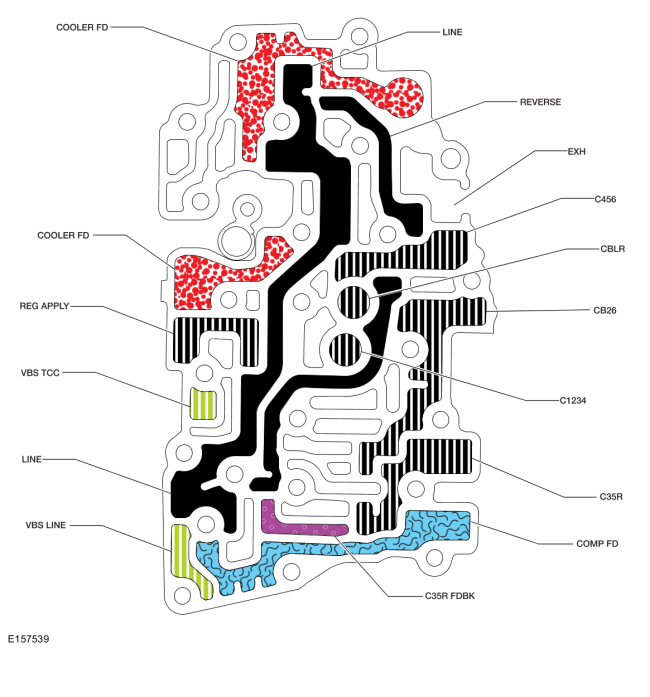

Transmission Case Hydraulic Passages

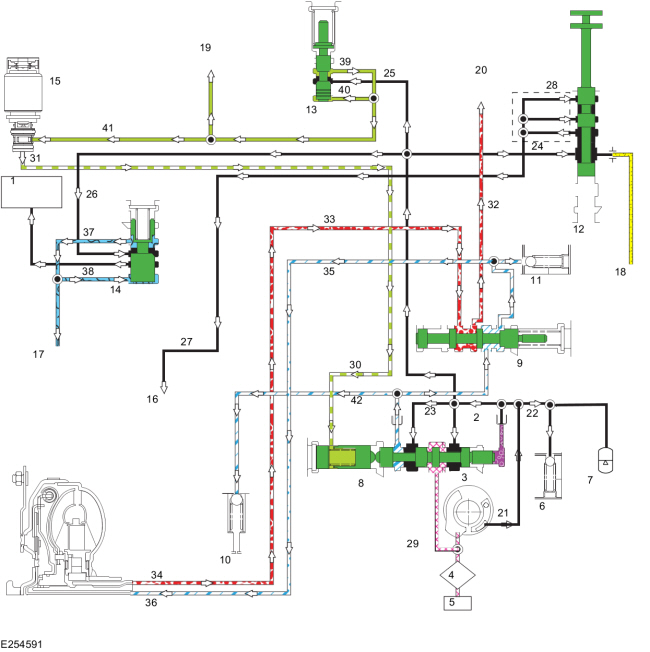

Item	Description
1	TRANSMISSION FLUID TEMPERATURE SENSOR
2	PLUG
3	PUMP
4	FILTER
5	SUMP
6	PUMP BLOW OFF VALVE
7	TRANSMISSION FLUID AUXILIARY PUMP
8	MAIN PRESSURE REGULATOR VALVE
9	TCC CONTROL VALVE
10	DIFFERENTIAL LUBRICATION
11	TCC BLOW OFF VALVE
12	MANUAL VALVE
13	SOLENOID REGULATOR VALVE
14	CONTROL PRESSURE REGULATOR
15	LINE PRESSURE CONTROL (LPC) SOLENOID
16	TO CLUTCH CONTROL BYPASS VALVE, TORQUE CONVERTER CLUTCH (TCC) REGULATOR VALVE, FORWARD (1, 2, 3, 4), INTERMEDIATE (2, 6) AND DIRECT (3, 5, R) REGULATOR VALVES
17	COMPENSATOR FEED PRESSURE
18	PROVIDES CIRCUIT BACKFILL
19	SUPPLY CIRCUIT TO SOLENOIDS
20	TO TRANSMISSION FLUID COOLER
21	LINE
22	LINE
23	LINE
24	LINE
25	LINE
26	LINE
27	LINE
28	DRIVE
29	BYPASS
30	VBS LINE
31	VBS LINE
32	COOLER FD
33	TCC APPLY
34	TCC APPLY
35	TCC RELEASE
36	TCC RELEASE
37	COMP FD
38	COMP FD
39	SOL FD
40	SOL FD
41	SOL FD
42	CONV FD

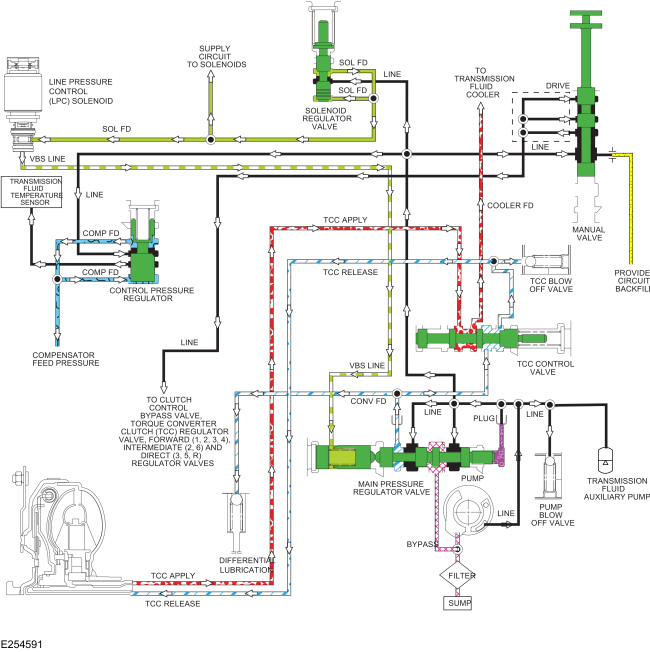

Line pressure is controlled by the LPC solenoid, which is controlled by the PCM . This effects shift feel and apply component operation.

When the engine is running, the pump supplies pressure to the main pressure regulator valve, which is controlled by the LPC solenoid. The main pressure regulator valve controls the line pressure to the LINE circuit which supplies the manual valve solenoid regulator valve and the control pressure regulator valve.

When the manual valve is in the reverse position, it supplies the clutch control bypass valve with line pressure to position it to supply line pressure to the direct (3, 5, R) regulator valve and regulated line pressure to the low/reverse clutch to apply the clutch.

When the manual valve is in the DRIVE or LOW positions, it directs line pressure from the LINE circuit to the DRIVE circuit to supply line pressure to the:

• Clutch control bypass valve
• Clutch control bypass valve
• Intermediate (2, 6) regulator valve
• TCC regulator valve
• Direct (3, 5, R) clutch regulator valve

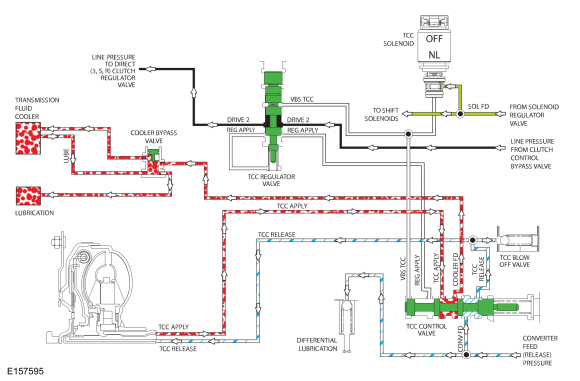

Torque Converter Clutch (TCC) and Lubrication Circuits TCC Released

Pressure for TCC release is supplied by the main pressure regulator valve to the TCC control valve through the CONV FD circuit. The CONV FD circuit also supplies lubrication for the differential. When the TCC is released, the TCC control valve is positioned by the TCC solenoid to direct CONV FD pressure to the TCC RELEASE circuit to release the TCC . TCC RELEASE pressure returns to the TCC control valve through the TCC APPLY circuit. The position of the TCC control valve opens the TCC APPLY circuit to the COOLER FD circuit which allows the transmission fluid returned from the torque converter to cycle through the thermal bypass valve circuit when the TFT is below 80°C-93°C (176°F-200°F) or the transmission fluid cooler when the temperature is above 80°C-93°C (176°F-200°F).

Return transmission fluid from the thermal bypass valve or the transmission fluid cooler supplies transmission lubrication through the LUBE circuit which runs through the input shaft.

For lubrication passage location and description, refer to Hydraulic Circuit Identification Chart.

The position of the TCC control valve is controlled by pressure from the TCC solenoid through the VBS TCC circuit. The TCC solenoid is controlled by the PCM .

Torque Converter Clutch (TCC) and Lubrication Circuits TCC Applied

When the TCC clutch is applied, the TCC solenoid applies pressure to the TCC control and regulator valves to position the valves to apply the TCC clutch. Regulated line pressure is supplied to the TCC control valve through the REG APPLY circuit by the TCC regulator valve. The TCC control valve directs the regulated line pressure from the REG APPLY circuit to the TCC APPLY circuit to apply the TCC . The TCC control valve blocks the TCC RELEASE circuit to maintain pressure in the TCC APPLY circuit. The TCC control valve directs the CONV FD circuit to the COOLER FD circuit to allow the transmission fluid to flow through the thermal bypass valve or the transmission fluid cooler to the LUBE circuit to lubricate the transmission.

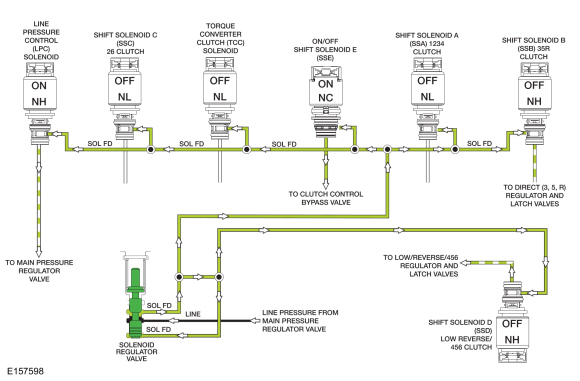

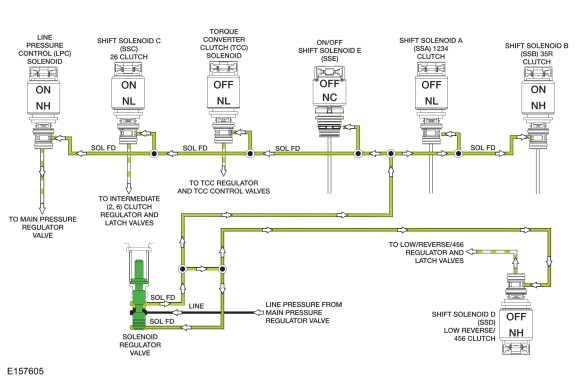

PARK and NEUTRAL Position Solenoid Hydraulic Circuits

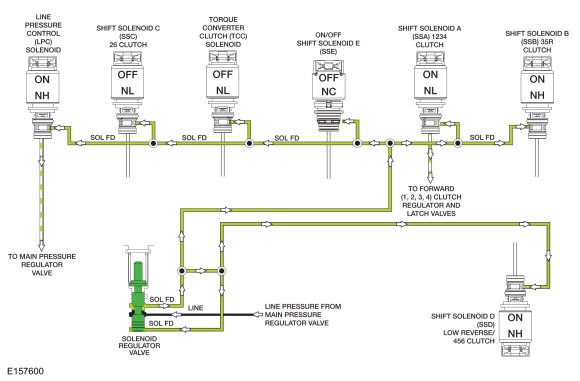

Line pressure from the main pressure regulator valve is directed to the individual shift, TCC and LPC solenoids by the solenoid regulator valve through the SOL FD circuit. The solenoids, controlled by the PCM , direct the fluid to the valves that they control.

The LPC solenoid applies varying pressure to the main pressure regulator valve to control line pressure.

In the PARK and NEUTRAL positions, SSD applies varying pressure to the low reverse/456 regulator and latch valves through the VBS CBR1/456 hydraulic circuit to position the valves to apply the low/reverse clutch. ON/OFF SSE directs pressure to the clutch control bypass valve to position the valve to direct regulated line pressure from the low reverse/456 regulator valve to the low/reverse clutch.

REVERSE Position Solenoid Hydraulic Circuits

In the REVERSE position, SSD applies varying pressure to the low reverse/456 regulator and latch valves through the VBS CBR1/456 hydraulic circuit to position the valves to apply the low/reverse clutch. ON/OFF SSE directs pressure to the clutch control bypass valve to position the valve to direct regulated line pressure from the low reverse/456 regulator valve to the low/reverse clutch. The clutch control bypass valve also directs line pressure from the REVERSE circuit to the 35R regulator valve through the C35R FD and DRIVE 2/C35R FD circuits. SSB directs varying pressure to the 35R regulator and latch valves through the VBS C35R hydraulic circuit to apply the direct (3, 5, R) clutch.

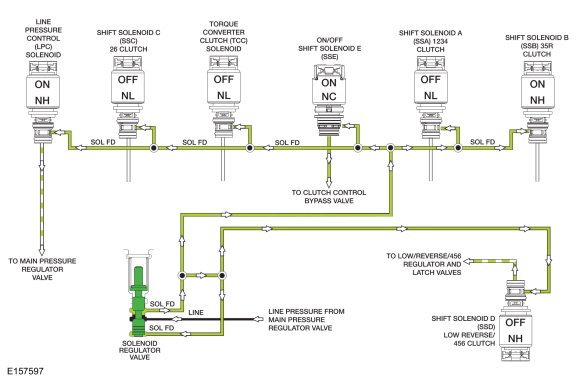

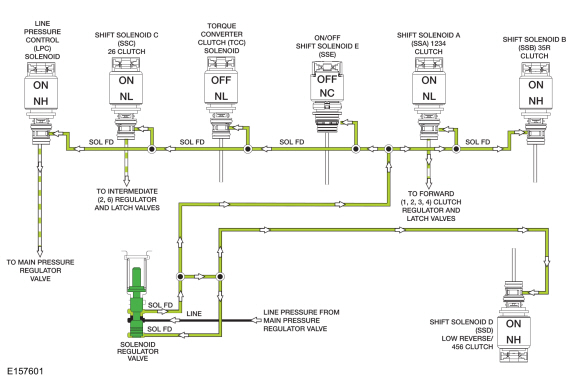

Manual Low Position and 1st Gear Below 8 km/h (5 mph) Solenoid Hydraulic Circuits

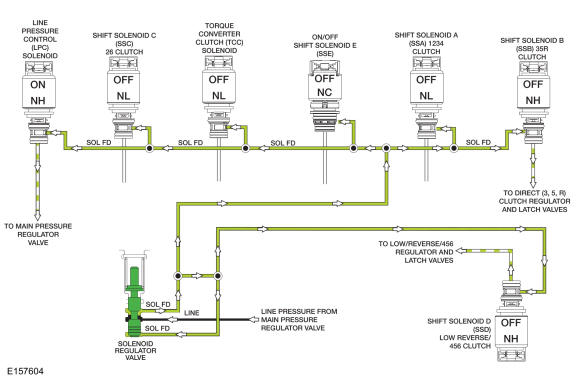

1st Gear Above 8 km/h (5 mph) Solenoid Hydraulic Circuits

In 1st gear, SSA applies varying pressure to the 1234 clutch regulator and latch valves through the VBS C1234 hydraulic circuit to apply the forward (1, 2, 3, 4) clutch.

When vehicle speed is below 8 km/h (5 mph), or the selector lever is in the manual low position, SSD applies varying pressure to the low reverse/456 regulator and latch valves through the VBS CBR1/456 hydraulic circuit to position the valves to apply the low/reverse clutch. ON/OFF SSE directs pressure to the clutch control bypass valve to position the valve to direct regulated line pressure from the low reverse/456 regulator valve to the low/reverse clutch. As vehicle speed increases above 8 km/h (5 mph) in 1st gear, SSD removes pressure from the low reverse/456 regulator and latch valves and SSE removes pressure from the clutch control bypass valve to release the low/reverse clutch.

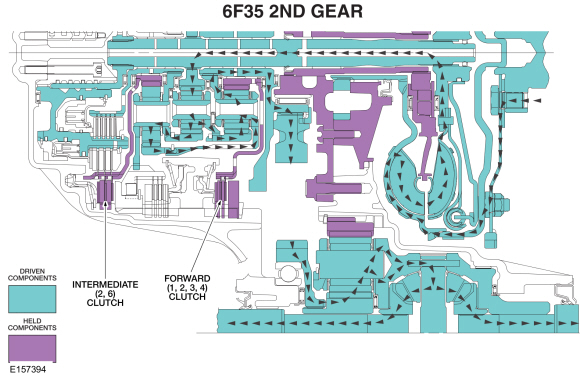

2nd Gear Solenoid Hydraulic Circuits

In 2nd gear, the forward (1, 2, 3, 4) clutch remains applied. SSC applies varying pressure to the 26 regulator and latch valves through the VBS CB26 hydraulic circuit to apply the intermediate (2, 6) clutch.

3rd Gear Solenoid Hydraulic Circuits

In 3rd gear, the forward (1, 2, 3, 4) clutch remains applied. SSC releases pressure to the 26 regulator and latch valves to release the intermediate (2, 6) clutch. SSB directs pressure to the 35R regulator and latch valves through the VBS CB26 hydraulic circuit to apply the direct (3, 5, R) clutch.

4th Gear Solenoid Hydraulic Circuits

In 4th gear, the forward (1, 2, 3, 4) clutch remains applied. SSB releases pressure to the 35R regulator and latch valves. SSD directs pressure to the low reverse/456 regulator and latch valves through the VBS CBR1/456 hydraulic circuit. With SSE released, the clutch control bypass valve directs the regulated line pressure from the low reverse/456 regulator valve to the overdrive (4, 5, 6) clutch to apply the clutch.

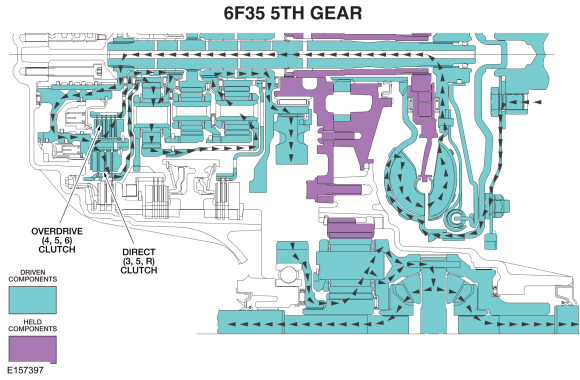

5th Gear Solenoid Hydraulic Circuits

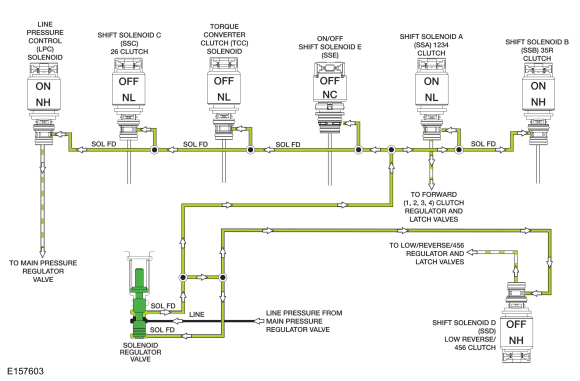

In 5th gear, the overdrive (4, 5, 6) clutch remains applied. SSA releases pressure to the 1234 regulator and latch valves to release the forward (1, 2, 3, 4) clutch. SSB directs pressure to the 35R regulator and latch valves through the VBS C35R hydraulic circuit to apply the direct (3, 5, R) clutch.

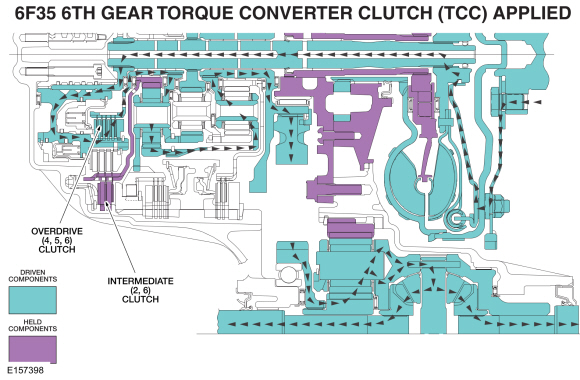

6th Gear Solenoid Hydraulic Circuits with the TCC applied

In 6th gear, the overdrive (4, 5, 6) clutch remains applied. SSB releases pressure to the 35R regulator and latch valves. SSC applies varying pressure to the 26 clutch regulator and latch valves through the VBS CB26 hydraulic circuit to apply the intermediate (2, 6) clutch.

The TCC can be applied in 4th, 5th or 6th gear. To apply the TCC , the TCC solenoid applies pressure to the TCC regulator valve and the TCC control valve to position the valves to apply the clutch.

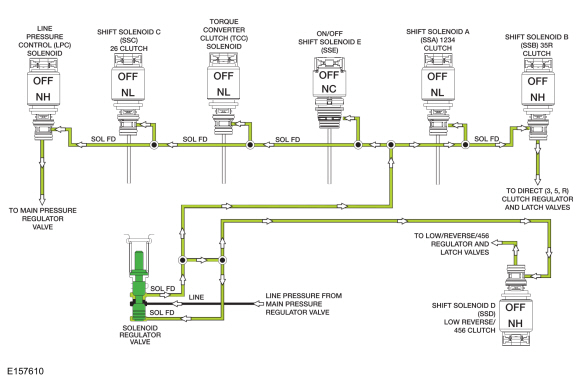

5th Gear Failsafe Solenoid Hydraulic Circuits

During a mechanical, hydraulic or electrical failure with the manual lever in the DRIVE position, the transmission defaults to 5th gear. When the transmission is in 5th gear failsafe, the PCM does not control the shift solenoids and they default to their normal state (maximum pressure, minimum pressure, on or off). The LPC solenoid defaults to maximum pressure, SSA defaults to minimum pressure, SSB defaults to maximum pressure, SSC defaults to minimum pressure, SSD defaults to maximum pressure and the TCC solenoid defaults to minimum pressure.

With SSB applying maximum pressure to the direct (3, 5, R) regulator and latch valves, the direct (3, 5, R) clutch is applied. With SSD applying maximum pressure to the low reverse/456 regulator and latch valves with SSE in the OFF position, the overdrive (4, 5, 6) clutch is applied, providing 5th gear.

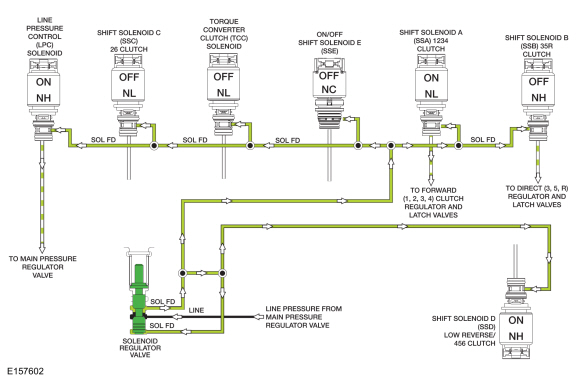

Solenoid Body

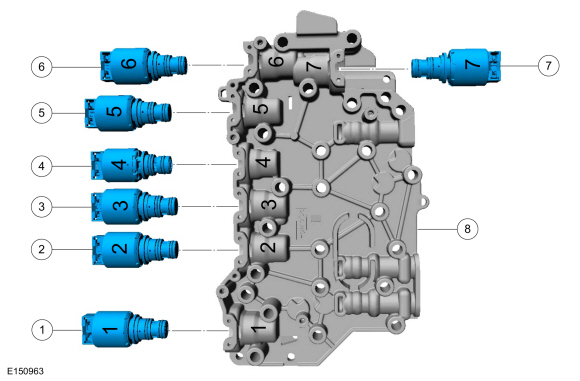

Item	Description
1	LPC solenoid
2	SSC
3	TCC solenoid
4	SSE ON/OFF solenoid
5	SSA
6	SSB
7	SSD
8	Solenoid body

Solenoid Body

The solenoid body contains 7 solenoids: 5 shift solenoids SSA , SSB , SSC , SSD and SSE , 1 TCC solenoid and 1 LPC solenoid. The TFT sensor is located in the solenoid body. The solenoid body is serviced as an assembly.

The solenoid body has a unique strategy data file that must be downloaded to the PCM . There is a 7-digit solenoid body identification and a 13-digit solenoid body strategy for each solenoid body. When a new solenoid body or transmission is installed, the scan tool must be used to get the solenoid body strategy data file and download it into the PCM .

If the PCM is replaced and the PCM data cannot be inhaled or exhaled, the solenoid body identification and solenoid body strategy must be downloaded into the PCM .

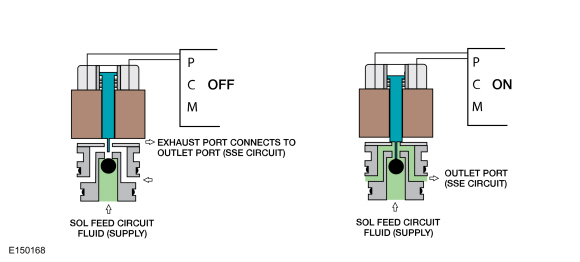

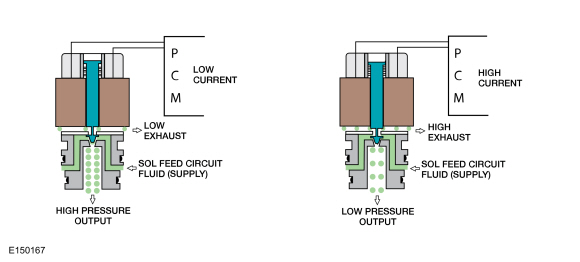

This transmission uses 3 types of solenoids: On/Off, normally low and normally high. On/Off solenoids open or close hydraulic passages based on the voltage signal it receives. Normally low solenoids provide hydraulic pressure proportional to supplied current. A normally low solenoid will not provide pressure without current, while it will supply high pressure with high current. Normally high solenoids provide pressure inversely proportional to supplied current. Normally high solenoids provide full output of pressure with no current and very low pressure with high current.

ON/OFF Solenoids

Item	Description
SSE	Normally closed solenoid that blocks SOL FEED pressure from the SSE circuit. When energized, pressure from the SSE circuit positions the multiplex shift valve to direct CBLR/C456 SUPPLY pressure to the low reverse clutch.

Normally Low Solenoids

Item	Description
SSA	SSA blocks SOL FEED pressure from the SSA SIG circuit when low current is supplied. When energized, SSA SIG pressure positions the CB1234 clutch regulator and boost valves to direct CB1234 SUP pressure to apply the forward clutch.
SSC	SSC blocks SOL FEED pressure to the SSC SIG circuit when low current is supplied. When energized, SSC SIG pressure positions the CB26 clutch regulator valve to direct CB26FD/CB1234FD pressure to apply the intermediate clutch.
TCC solenoid	The TCC solenoid is used in the transmission control system to control the application, modulation and release of the torque converter clutch. The TCC solenoid blocks SOL FEED pressure to the TCC SOL SIG circuit when low current is supplied. When energized, TCC SOL SIG pressure positions the TCC reg apply and control valves to direct REG APPLY pressure to apply the torque converter.

Normally High Solenoids

Item	Description
SSB	SSB feeds SOL FEED pressure to the SSB SIG circuit to position the direct (3,5,R) clutch regulator and boost valves to apply the direct (3,5,R) clutch. When energized, SSB blocks SSB SIG to position the direct clutch (3,5,R) regulator and boost valves to release the direct (3,5,R) clutch.
SSD	SSD feeds SOL FEED pressure to the SSD SIG circuit to position the CBLR/C456 regulator and boost valves to apply either the low/reverse clutch or the overdrive (4,5,6) clutch. When energized, SSD blocks SSD SIG to position the CBLR/C456 regulator and boost valves to release either the low/reverse clutch or the overdrive (4,5,6) clutch.
LPC solenoid	The LPC solenoid is used to apply resistive force to the main regulator valve to adjust line pressure. Line pressure is inversely proportional to the current supplied to the LPC solenoid. As current decreases, line pressure increases.

Park

  Park Clutch Application Chart

Gear	Forward (1,2,3,4)	Direct (3,5,R)	Intermediate (2,6)	Low / Reverse (L,R)	Overdrive (4,5,6)	Low-OWC
Park				H
Planetary Components	Front sun	Rear sun	Rear sun	Rear carrier/center ring	Rear carrier/center ring	Rear carrier/center ring

H = Holding

  Park Position Solenoid Operation Chart

Base Selector Lever Position	PCM Commanded Gear	SSA NL (1,2,3,4)	SSB NH (3,5,R)	SSC NL (2,6)	SSD NH (L,R,4,5,6)	SSE (On/ Off) NC	TCC NL
P	P	Off	On	Off	Off	On	Off

NC = Normally Closed

NH = Normally High

NL = Normally Low

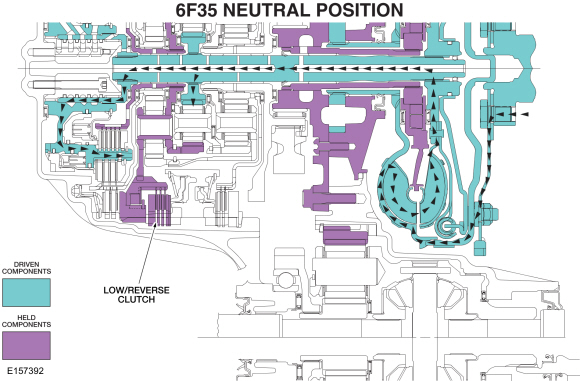

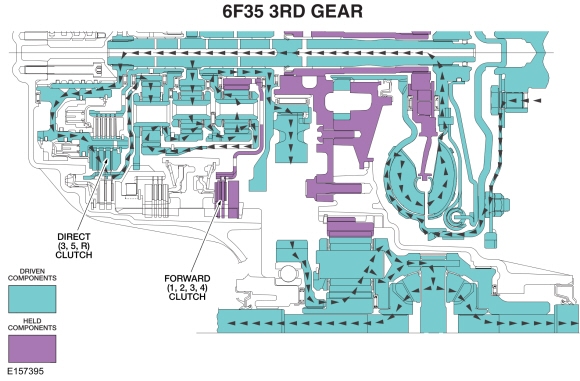

Powerflow

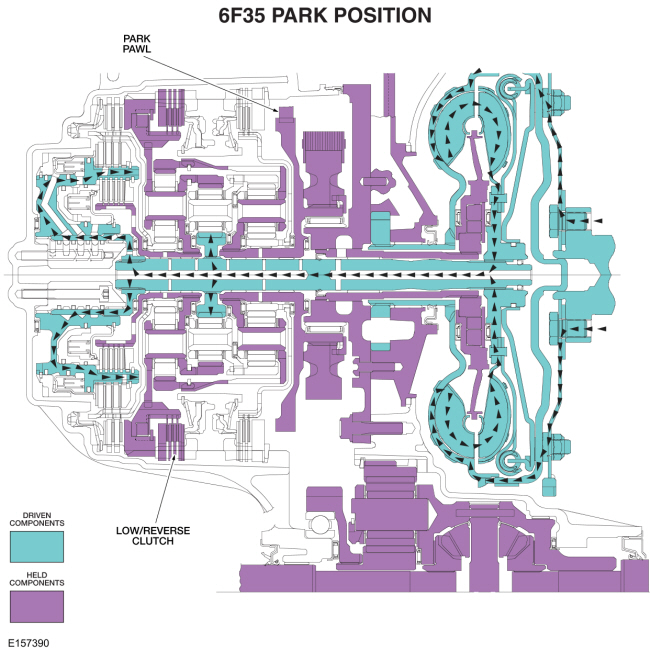

• With the selector lever in PARK, the low/reverse clutch holds the rear planetary carrier/center ring gear stationary.
• The park pawl holds the rear ring/front planetary carrier stationary.
• The turbine shaft drives the center sun gear.

Reverse

  Reverse Clutch Application Chart

Gear	Forward (1,2,3,4)	Direct (3,5,R)	Intermediate (2,6)	Low / Reverse (L,R)	Overdrive (4,5,6)	Low-OWC
Reverse		D		H
Planetary Components	Front sun	Rear sun	Rear sun	Rear carrier/center ring	Rear carrier/center ring	Rear carrier/center ring

H = Holding

D = Driving

  Reverse Position Solenoid Operation Chart

Base Selector Lever Position	PCM Commanded Gear	SSA NL (1,2,3,4)	SSB NH (3,5,R)	SSC NL (2,6)	SSD NH (L,R,4,5,6)	SSE (On/ Off) NC	TCC NL
R	R	Off	Off	Off	Off	On	Off

NC = Normally Closed

NH = Normally High

NL = Normally Low

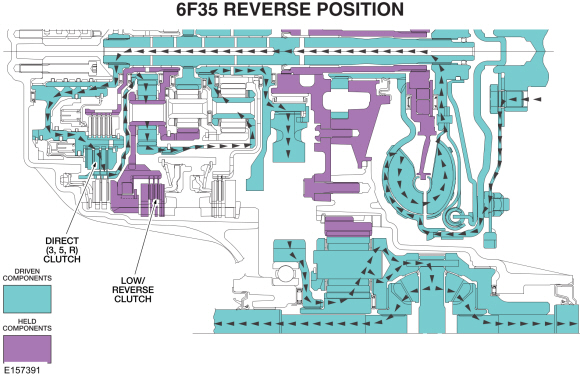

Powerflow

• With the selector lever in REVERSE, the low/reverse clutch holds the rear planetary carrier/center ring gear stationary.
• The direct clutch drives the rear sun gear.
• The rear ring/front planetary carrier transfers torque to the output hub in a reverse direction with a ratio of 2.88.

Neutral

  Neutral Clutch Application Chart

Gear	Forward (1,2,3,4)	Direct (3,5,R)	Intermediate (2,6)	Low / Reverse (L,R)	Overdrive (4,5,6)	Low-OWC
Neutral				H
Planetary Components	Front sun	Rear sun	Rear sun	Rear carrier/center ring	Rear carrier/center ring	Rear carrier/center ring

H = Holding

  Neutral Position Solenoid Operation Chart

Base Selector Lever Position	PCM Commanded Gear	SSA NL (1,2,3,4)	SSB NH (3,5,R)	SSC NL (2,6)	SSD NH (L,R,4,5,6)	SSE (On/ Off) NC	TCC NL
N	N	Off	On	Off	Off	On	Off

NC = Normally Closed

NH = Normally High

NL = Normally Low

Powerflow

• With the selector lever in NEUTRAL, the low/reverse clutch holds the rear planetary carrier/center ring gear stationary.
• The turbine shaft drives the center sun gear.

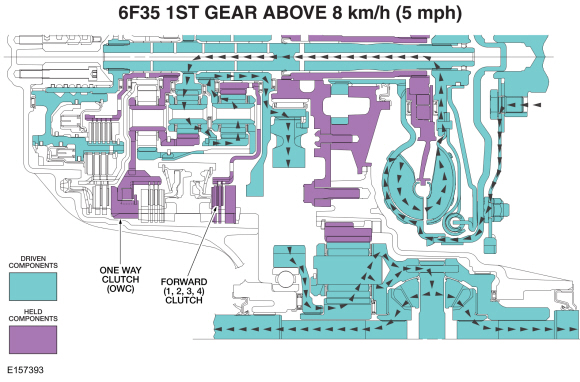

1st Gear

NOTE: The transmission operates differently in 1st gear above and below 8 km/h (5 mph). Transmission operation is the same below 8 km/h (5 mph) and in the LOW position.

  1st Gear Above 8 km/h (5 mph) Clutch Application Chart

Gear	Forward (1,2,3,4)	Direct (3,5,R)	Intermediate (2,6)	Low / Reverse (L,R)	Overdrive (4,5,6)	Low-OWC
1st Gear D	H					H
Planetary Components	Front sun	Rear sun	Rear sun	Rear carrier/center ring	Rear carrier/center ring	Rear carrier/center ring

H = Holding

  1st Gear LOW Position and Below 8 km/h (5 mph) Clutch Application Chart

Gear	Forward (1,2,3,4)	Direct (3,5,R)	Intermediate (2,6)	Low / Reverse (L,R)	Overdrive (4,5,6)	Low-OWC
1st Gear D	H			H		H
Planetary Components	Front sun	Rear sun	Rear sun	Rear carrier/center ring	Rear carrier/center ring	Rear carrier/center ring

H = Holding

  1st Gear Above 8 km/h (5 mph) Solenoid Operation Chart

Base Selector Lever Position	PCM Commanded Gear	SSA NL (1,2,3,4)	SSB NH (3,5,R)	SSC NL (2,6)	SSD NH (L,R,4,5,6)	SSE (On/ Off) NC	TCC NL
D	1	On	On	Off	On	Off	Off

NC = Normally Closed

NH = Normally High

NL = Normally Low

  1st Gear LOW Position and Below 8 km/h (5 mph) Solenoid Operation Chart

Base Selector Lever Position	PCM Commanded Gear	SSA NL (1,2,3,4)	SSB NH (3,5,R)	SSC NL (2,6)	SSD NH (L,R,4,5,6)	SSE (On/ Off) NC	TCC NL
L	1	On	On	Off	Off	On	Off

NC = Normally Closed

NH = Normally High

NL = Normally Low

Powerflow

• In first gear, the forward clutch holds the front sun gear stationary.
• The rear planetary carrier/center ring gear is held stationary by the low One-Way Clutch (OWC) and/or the low reverse (1, R) clutch.
• The turbine shaft transfers torque to the center sun gear. The center sun gear transfers the torque to the center planetary carrier/front ring gear. The front ring gear transfers torque to the front planetary carrier/rear ring gear and the output hub to produce a ratio of 4.48.

2nd Gear

  2nd Gear Clutch Application Chart

Gear	Forward (1,2,3,4)	Direct (3,5,R)	Intermediate (2,6)	Low / Reverse (L,R)	Overdrive (4,5,6)	Low-OWC
2nd Gear D	H		H
Planetary Components	Front sun	Rear sun	Rear sun	Rear carrier/center ring	Rear carrier/center ring	Rear carrier/center ring

H = Holding

  2nd Gear Solenoid Operation Chart

Base Selector Lever Position	PCM Commanded Gear	SSA NL (1,2,3,4)	SSB NH (3,5,R)	SSC NL (2,6)	SSD NH (L,R,4,5,6)	SSE (On/ Off) NC	TCC NL
D	2	On	On	On	On	Off	Off

NC = Normally Closed

NH = Normally High

NL = Normally Low

Powerflow

• In second gear the forward clutch holds the front sun gear stationary.
• The intermediate clutch holds the rear sun gear stationary.
• The turbine shaft transfers torque to the center sun gear. The center sun gear transfers torque to the center ring gear/rear planetary carrier.
• The rear planetary carrier transfers the torque to the rear ring gear/front planetary carrier and the output hub to produce a gear ratio of 2.87.

3rd Gear

  3rd Gear Clutch Application Chart

Gear	Forward (1,2,3,4)	Direct (3,5,R)	Intermediate (2,6)	Low / Reverse (L,R)	Overdrive (4,5,6)	Low-OWC
3rd Gear D	H	D
Planetary Components	Front sun	Rear sun	Rear sun	Rear carrier/center ring	Rear carrier/center ring	Rear carrier/center ring

H = Holding

D = Driving

  3rd Gear Solenoid Operation Chart

Base Selector Lever Position	PCM Commanded Gear	SSA NL (1,2,3,4)	SSB NH (3,5,R)	SSC NL (2,6)	SSD NH (L,R,4,5,6)	SSE (On/ Off) NC	TCC NL
D	3	On	Off	Off	On	Off	Off

NC = Normally Closed

NH = Normally High

NL = Normally Low

Powerflow

• In third gear the forward clutch holds the front sun gear stationary.
• The direct clutch drives the rear sun gear.
• Power flows from the center sun gear to the center planetary carrier/front ring gear. From there, torque is transferred to the rear ring gear/front planetary carrier.
• Power also flows from the rear sun gear to the rear ring gear/front planetary carrier.
• The two inputs to the front planetary carrier combine and transfer torque to the output hub to produce a gear ratio of 1.84.

4th Gear

  4th Gear Clutch Application Chart

Gear	Forward (1,2,3,4)	Direct (3,5,R)	Intermediate (2,6)	Low / Reverse (L,R)	Overdrive (4,5,6)	Low-OWC
4th Gear D	H				D
Planetary Components	Front sun	Rear sun	Rear sun	Rear carrier/center ring	Rear carrier/center ring	Rear carrier/center ring

H = Holding

D = Driving

  4th Gear Solenoid Operation Chart

Base Selector Lever Position	PCM Commanded Gear	SSA NL (1,2,3,4)	SSB NH (3,5,R)	SSC NL (2,6)	SSD NH (L,R,4,5,6)	SSE (On/ Off) NC	TCC NL
D	4	On	On	Off	Off	Off	On/Off

NC = Normally Closed

NH = Normally High

NL = Normally Low

Powerflow

• In fourth gear the forward clutch holds the front sun gear stationary.
• The overdrive clutch drives the rear planetary carrier/center ring gear.
• Power flows from turbine shaft to the center sun gear and center ring gear.
• The two inputs to the center planetary carrier combine and transfer torque to the front ring gear.
• The front ring gear transfers the torque to the front planetary carrier and onto the output hub to produce a gear ratio of 1.41.

5th Gear

  5th Gear Clutch Application Chart

Gear	Forward (1,2,3,4)	Direct (3,5,R)	Intermediate (2,6)	Low / Reverse (L,R)	Overdrive (4,5,6)	Low-OWC
5th Gear D		D			D
Planetary Components	Front sun	Rear sun	Rear sun	Rear carrier/center ring	Rear carrier/center ring	Rear carrier/center ring

D = Driving

  5th Gear Solenoid Operation Chart

Base Selector Lever Position	PCM Commanded Gear	SSA NL (1,2,3,4)	SSB NH (3,5,R)	SSC NL (2,6)	SSD NH (L,R,4,5,6)	SSE (On/ Off) NC	TCC NL
D	5	Off	Off	Off	Off	Off	On/Off

NC = Normally Closed

NH = Normally High

NL = Normally Low

Powerflow

• In fifth gear the overdrive clutch drives the rear planetary carrier/center ring gear.
• The direct clutch drives the rear sun gear.
• The turbine shaft transfers torque to the center sun gear, rear sun gear, and rear planetary carrier/center ring gear.
• The torque from the three inputs locks the three planetary gearsets which produces a gear ratio of 1 to 1.

Fail-safe Mode

• Because both SSD and SSB apply the clutches they control when they are turned OFF, 5th gear is the fail-safe.

6th Gear

  6th Gear Clutch Application Chart

Gear	Forward (1,2,3,4)	Direct (3,5,R)	Intermediate (2,6)	Low / Reverse (L,R)	Overdrive (4,5,6)	Low-OWC
6th Gear D			H		D
Planetary Components	Front sun	Rear sun	Rear sun	Rear carrier/center ring	Rear carrier/center ring	Rear carrier/center ring

H = Holding

D = Driving

  6th Gear Solenoid Operation Chart

Base Selector Lever Position	PCM Commanded Gear	SSA NL (1,2,3,4)	SSB NH (3,5,R)	SSC NL (2,6)	SSD NH (L,R,4,5,6)	SSE (On/ Off) NC	TCC NL
D	6	Off	On	On	Off	Off	On/Off

NC = Normally Closed

NH = Normally High

NL = Normally Low

Powerflow

• In sixth gear the overdrive clutch drives the rear planetary carrier/center ring gear.
• The intermediate clutch holds the rear sun gear.
• The torque from the rear planetary carrier is transferred to the rear ring gear/front planetary carrier and the output hub which produces a gear ratio of 0.74.
