Ford Ecosport: Supplemental Climate Control / Description and Operation - Supplemental Climate Control - Component Location

Ford Ecosport 2014-2024 Service and Repair Manual / Climate Control System / Supplemental Climate Control / Description and Operation - Supplemental Climate Control - Component Location

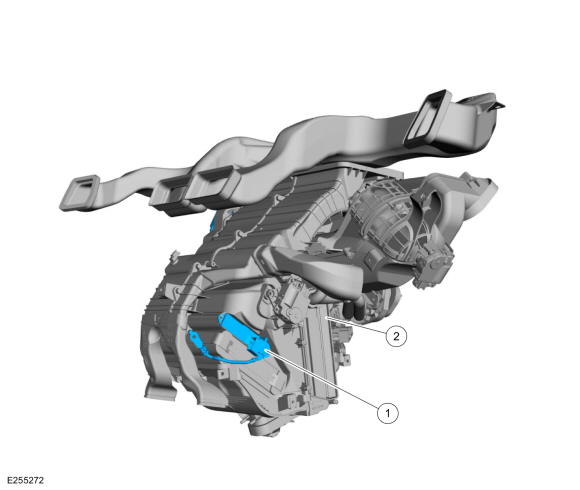

Item Description
1 Electric booster heater
2 Climate control housing
