Ford Ecosport: Parking Aid - Vehicles With: Parking Aid Camera / Description and Operation - Parking Aid - Component Location

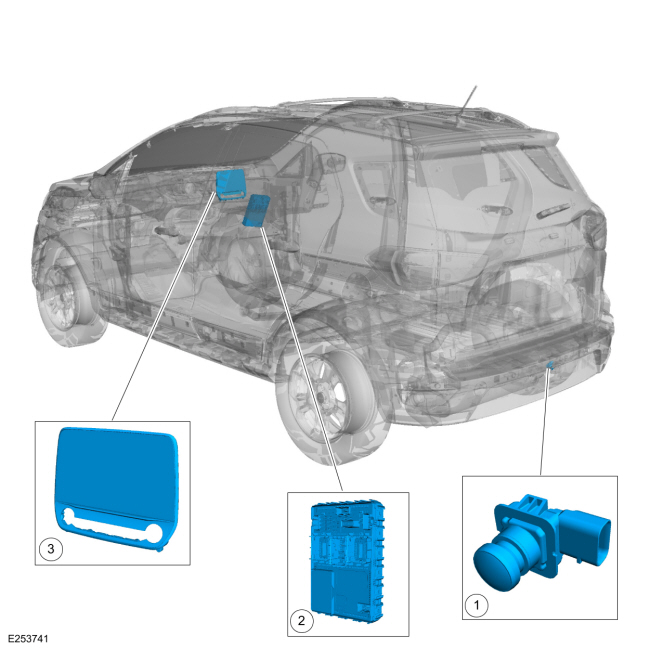

Component Location - Parking Aid Camera


Item Description
1 Rear parking aid camera
2 BCM
3 FDIM
