Ford Ecosport: Climate Control System - General Information / General Procedures - Air Conditioning (A/C) Clutch Air Gap Adjustment
Activation
-
NOTE:
Compressor with a spring rubber clutch shown others similar.
Check the A/C clutch air gap at 3 equally spaced places between the
clutch plate and the A/C clutch pulley. Refer to Specifications in Group
412.
-
Remove the A/C clutch. Refer to Air Conditioning A/C Clutch and Air Conditioning A/C Clutch Field Coil procedure in Group 412.
-
NOTE:
For some vehicles a shim kit may only be available with the A/C clutch assembly.

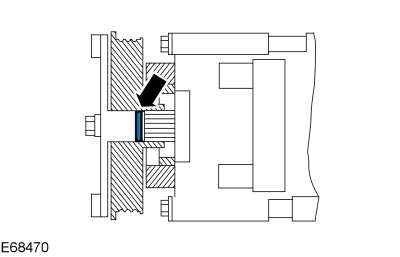

Add or remove spacers between the clutch plate hub and
the compressor shaft until the clearance is within specification. Refer
to Specifications in Group 412.
-
-
For fixed compressor
Torque:
177 lb.in (20 Nm)
-
For EVDC compressor
Torque:
128 lb.in (14.5 Nm)
